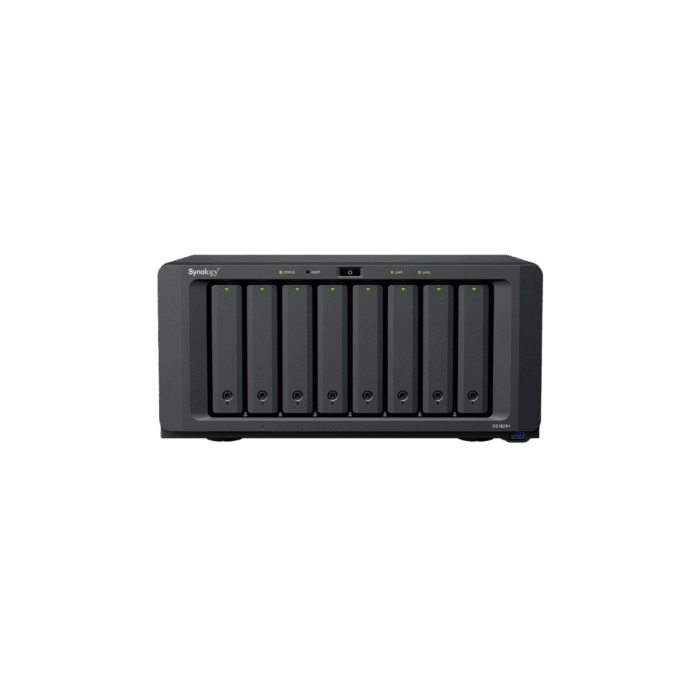

Synology DiskStation DS1825+

Synology DiskStation DS1825+

Short Description

  • Quad-core 2.2 GHz CPU
  • Built-in M.2 NVMe slots
  • Scales up to 18 drives

210,000.00

Description

Hardware Specifications
CPU
CPU Model AMD Ryzen V1500B
CPU Quantity 1
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 2.2 GHz
Hardware Encryption Engine
Memory
System Memory 8 GB DDR4 ECC SODIMM
Memory Module Pre-installed 8 GB (8 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage
Drive Bays 8
Maximum Drive Bays with Expansion Unit 18 (DX525 x 2)
M.2 Drive Slots 2 (NVMe)
Drive Type (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
  • M.2 2280 NVMe SSD
Hot Swappable Drive*
Notes
  • The hot swappable drive feature is not supported by M.2 SSD slots.
  • Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.
External Ports
RJ-45 2.5GbE LAN Port 2
USB 3.2 Gen 1 Port 3
Expansion Port 2
Expansion Port Type USB Type-C
PCIe
PCIe Expansion 1 x Gen3 x8 slot (x4 link)
Appearance
Size (Height x Width x Depth) 166 mm x 343 mm x 243 mm
Weight 6 kg
Others
System Fan 120 mm x 120 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 23.8 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 250 watts
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 60.1 watts (Access)
18.34 watts (HDD Hibernation)
British Thermal Unit 204.94 BTU/hr (Access)
62.54 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
Warranty
3-year hardware warranty, extendable to 5 years with EW201
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions. (Learn more)
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
Optional Accessories
Notes For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Notes:
  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
